CI/CD
Pipeline Jenkins déclenchée à chaque changement de code : build, tests, analyse, déploiement.
Projet 1 – Pipeline CI/CD
Déploiement d'un site HTML statique via Jenkins, SonarCloud, Docker, Ansible & Terraform sur AWS.
Cloud AWS
Hébergement sur EC2 avec sécurité réseau (Security Groups) et rôles IAM.
IaC
Infrastructure décrite en code avec Terraform : reproductible, traçable, versionnée.
Qualité & Sécurité
Analyse continue sous SonarCloud (bugs, vulnérabilités, code smells).
Objectif
Mettre en place une chaîne de bout en bout : analyses qualité/sécurité, build d'image Docker, provisionnement de l'infrastructure, puis déploiement automatisé de l'application sur AWS.
Outils installés (machine Jenkins / admin)
- AWS CLI v2 (configuré via
aws configure) - Terraform ≥ 1.6
- Ansible ≥ 2.15
- Docker (daemon actif, utilisateur dans le groupe
docker) - Git
Comptes & accès
- Compte AWS + clés IAM (droits EC2/VPC/IAM minimaux)
- Compte Docker Hub (token ou mot de passe)
- Organisation SonarCloud + token
- Dépôt GitHub pour le code et l'IaC
Jenkins – Plugins & configuration
- Git plugin
- Pipeline & Pipeline: Declarative
- Credentials Binding
- Docker Pipeline
- AnsiColor (confort)
- SonarQube Scanner for Jenkins (pour SonarCloud)
Jenkins – Credentials (IDs suggérés)
DOCKERHUB_CREDENTIALS: utilisateur/token Docker HubAWS_ACCESS_KEY_ID/AWS_SECRET_ACCESS_KEY(ou profil)SONAR_TOKEN: token SonarCloud
Jenkins – Global config
- Manage Jenkins → Tools : SonarScanner si utilisé
- Manage Jenkins → System : « SonarQube servers » →
https://sonarcloud.io

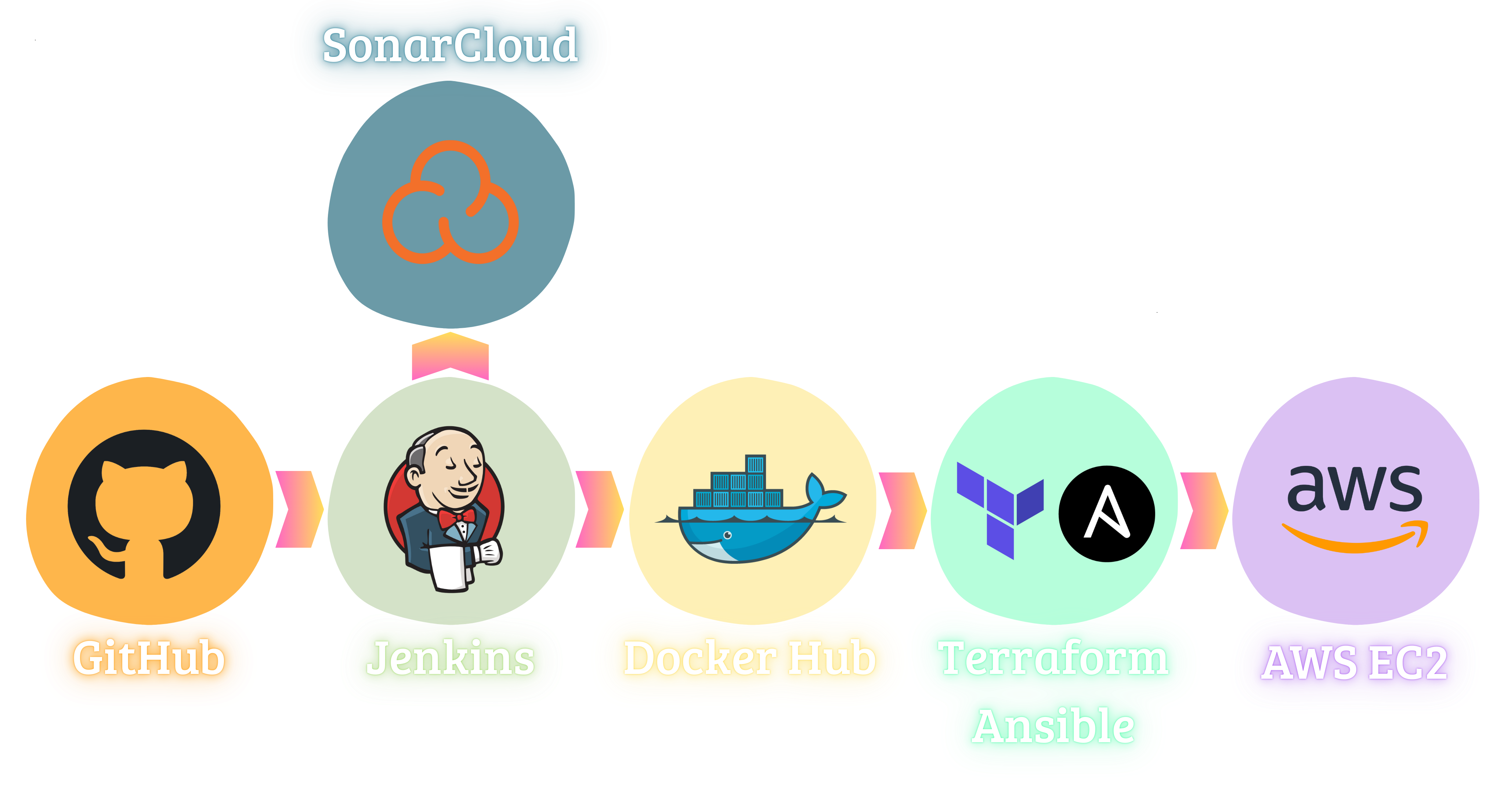

Architecture globale
Stack & Outils
- CI/CD : Jenkins (pipeline déclarative)
- Qualité : SonarCloud (bugs, vulnérabilités, couverture)
- IaC : Terraform (VPC/SecGroup/EC2/IAM)
- Config Mgmt : Ansible (rôles, idempotence)
- Containers : Docker (build multi-étapes, tags)
- Cloud : AWS (EC2, IAM, Security Groups)
Fonctionnalités clés
- Build & tests automatisés
- Analyse qualité/sécurité continue
- Build & push image Docker vers Docker Hub
- Provisioning infra AWS avec Terraform
- Déploiement applicatif via Ansible
- Rollbacks simplifiés via tags d'images
1) Provisionnement AWS avec Terraform
L'infrastructure est décrite en HCL et versionnée sur GitHub. Un terraform apply crée une instance
EC2, configure les Security Groups (HTTP/HTTPS/SSH) et applique les rôles IAM nécessaires.
devops@DevOps:~/Projet1/terraform$ terraform apply
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the
following symbols:
+ create
Terraform will perform the following actions:
# aws_eip.web_ip will be created
+ resource "aws_eip" "web_ip" {
+ allocation_id = (known after apply)
+ arn = (known after apply)
+ association_id = (known after apply)
+ carrier_ip = (known after apply)
+ customer_owned_ip = (known after apply)
+ domain = "vpc"
+ id = (known after apply)
+ instance = (known after apply)
+ ipam_pool_id = (known after apply)
+ network_border_group = (known after apply)
+ network_interface = (known after apply)
+ private_dns = (known after apply)
+ private_ip = (known after apply)
+ ptr_record = (known after apply)
+ public_dns = (known after apply)
+ public_ip = (known after apply)
+ public_ipv4_pool = (known after apply)
+ region = "eu-west-3"
+ tags = {
+ "Name" = "projet1-staging-web-eip"
}
+ tags_all = {
+ "Name" = "projet1-staging-web-eip"
}
}
# aws_instance.web will be created
+ resource "aws_instance" "web" {
+ ami = "ami-04ec97dc75ac850b1"
+ arn = (known after apply)
+ associate_public_ip_address = false
+ availability_zone = (known after apply)
+ disable_api_stop = (known after apply)
+ disable_api_termination = (known after apply)
+ ebs_optimized = (known after apply)
+ enable_primary_ipv6 = (known after apply)
+ force_destroy = false
+ get_password_data = false
+ host_id = (known after apply)
+ host_resource_group_arn = (known after apply)
+ iam_instance_profile = (known after apply)
+ id = (known after apply)
+ instance_initiated_shutdown_behavior = (known after apply)
+ instance_lifecycle = (known after apply)
+ instance_state = (known after apply)
+ instance_type = "t2.micro"
+ ipv6_address_count = (known after apply)
+ ipv6_addresses = (known after apply)
+ key_name = "sshsenan"
+ monitoring = (known after apply)
+ outpost_arn = (known after apply)
+ password_data = (known after apply)
+ placement_group = (known after apply)
+ placement_partition_number = (known after apply)
+ primary_network_interface_id = (known after apply)
+ private_dns = (known after apply)
+ private_ip = (known after apply)
+ public_dns = (known after apply)
+ public_ip = (known after apply)
+ region = "eu-west-3"
+ secondary_private_ips = (known after apply)
+ security_groups = (known after apply)
+ source_dest_check = true
+ spot_instance_request_id = (known after apply)
+ subnet_id = (known after apply)
+ tags = {
+ "Name" = "projet1-staging-web-server"
}
+ tags_all = {
+ "Name" = "projet1-staging-web-server"
}
+ tenancy = (known after apply)
+ user_data_base64 = (known after apply)
+ user_data_replace_on_change = false
+ vpc_security_group_ids = (known after apply)
+ capacity_reservation_specification (known after apply)
+ cpu_options (known after apply)
+ ebs_block_device (known after apply)
+ enclave_options (known after apply)
+ ephemeral_block_device (known after apply)
+ instance_market_options (known after apply)
+ maintenance_options (known after apply)
+ metadata_options (known after apply)
+ network_interface (known after apply)
+ primary_network_interface (known after apply)
+ private_dns_name_options (known after apply)
+ root_block_device (known after apply)
}
# aws_internet_gateway.igw will be created
+ resource "aws_internet_gateway" "igw" {
+ arn = (known after apply)
+ id = (known after apply)
+ owner_id = (known after apply)
+ region = "eu-west-3"
+ tags = {
+ "Name" = "staging-igw"
}
+ tags_all = {
+ "Name" = "staging-igw"
}
+ vpc_id = (known after apply)
}
# aws_route_table.public will be created
+ resource "aws_route_table" "public" {
+ arn = (known after apply)
+ id = (known after apply)
+ owner_id = (known after apply)
+ propagating_vgws = (known after apply)
+ region = "eu-west-3"
+ route = [
+ {
+ cidr_block = "0.0.0.0/0"
+ gateway_id = (known after apply)
# (11 unchanged attributes hidden)
},
]
+ tags = {
+ "Name" = "staging-public-rt"
}
+ tags_all = {
+ "Name" = "staging-public-rt"
}
+ vpc_id = (known after apply)
}
# aws_route_table_association.public_a will be created
+ resource "aws_route_table_association" "public_a" {
+ id = (known after apply)
+ region = "eu-west-3"
+ route_table_id = (known after apply)
+ subnet_id = (known after apply)
}
# aws_security_group.projet1_web_sg will be created
+ resource "aws_security_group" "projet1_web_sg" {
+ arn = (known after apply)
+ description = "Allow HTTP and SSH access"
+ egress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 0
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "-1"
+ security_groups = []
+ self = false
+ to_port = 0
# (1 unchanged attribute hidden)
},
]
+ id = (known after apply)
+ ingress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 22
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 22
# (1 unchanged attribute hidden)
},
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 443
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 443
# (1 unchanged attribute hidden)
},
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 80
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 80
# (1 unchanged attribute hidden)
},
]
+ name = "projet1_web_sg"
+ name_prefix = (known after apply)
+ owner_id = (known after apply)
+ region = "eu-west-3"
+ revoke_rules_on_delete = false
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
}
# aws_subnet.public_a will be created
+ resource "aws_subnet" "public_a" {
+ arn = (known after apply)
+ assign_ipv6_address_on_creation = false
+ availability_zone = "eu-west-3a"
+ availability_zone_id = (known after apply)
+ cidr_block = "10.0.1.0/24"
+ enable_dns64 = false
+ enable_resource_name_dns_a_record_on_launch = false
+ enable_resource_name_dns_aaaa_record_on_launch = false
+ id = (known after apply)
+ ipv6_cidr_block_association_id = (known after apply)
+ ipv6_native = false
+ map_public_ip_on_launch = true
+ owner_id = (known after apply)
+ private_dns_hostname_type_on_launch = (known after apply)
+ region = "eu-west-3"
+ tags = {
+ "Name" = "staging-public-a"
}
+ tags_all = {
+ "Name" = "staging-public-a"
}
+ vpc_id = (known after apply)
}
# aws_vpc.main will be created
+ resource "aws_vpc" "main" {
+ arn = (known after apply)
+ cidr_block = "10.0.0.0/16"
+ default_network_acl_id = (known after apply)
+ default_route_table_id = (known after apply)
+ default_security_group_id = (known after apply)
+ dhcp_options_id = (known after apply)
+ enable_dns_hostnames = true
+ enable_dns_support = true
+ enable_network_address_usage_metrics = (known after apply)
+ id = (known after apply)
+ instance_tenancy = "default"
+ ipv6_association_id = (known after apply)
+ ipv6_cidr_block = (known after apply)
+ ipv6_cidr_block_network_border_group = (known after apply)
+ main_route_table_id = (known after apply)
+ owner_id = (known after apply)
+ region = "eu-west-3"
+ tags = {
+ "Name" = "staging-main"
}
+ tags_all = {
+ "Name" = "staging-main"
}
}terraform plan puis apply pour créer l'infrastructure.Pourquoi Terraform ?
- Reproductibilité : même code, même infra.
- Traçabilité : changements audités via Git.
- Automatisation : intégré dans la pipeline Jenkins.
2) Docker : build & publication sur Docker Hub
L'application statique est packagée dans une image Docker. La pipeline build l'image, la tag
(ex. :latest et :${BUILD_NUMBER}) puis la pousse sur Docker Hub.

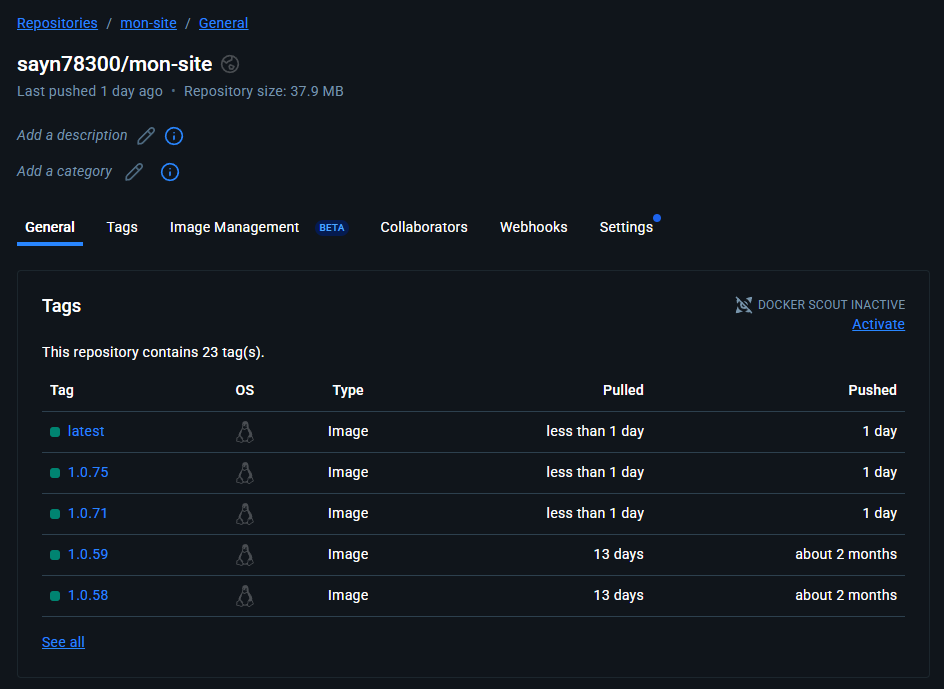

Dépôt Docker Hub contenant les images du site, prêtes à être déployées.

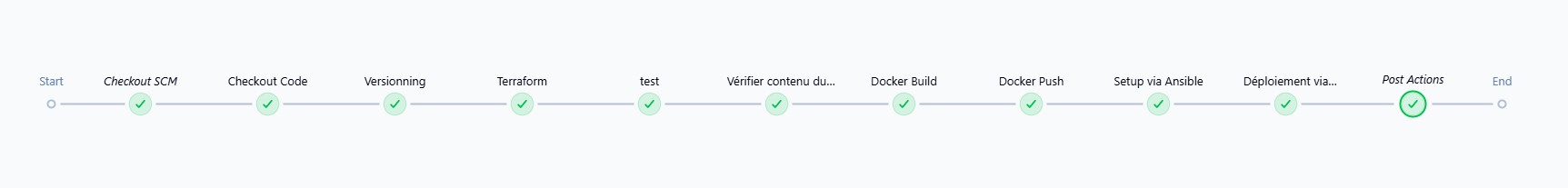

3) Pipeline CI/CD Jenkins
La pipeline est déclenchée à chaque commit sur la branche principale. Elle orchestre les étapes :
- Checkout du code (GitHub)
- Quality Gate : analyse SonarCloud
- Build de l'image Docker
- Push de l'image vers Docker Hub
- Infra :
terraform init/plan/apply - Déploiement : exécution des playbooks Ansible
4) SonarCloud : qualité & sécurité
À chaque build, un scan SonarCloud détecte bugs, vulnérabilités et code smells. Le tableau de bord permet d'identifier rapidement les points à corriger.

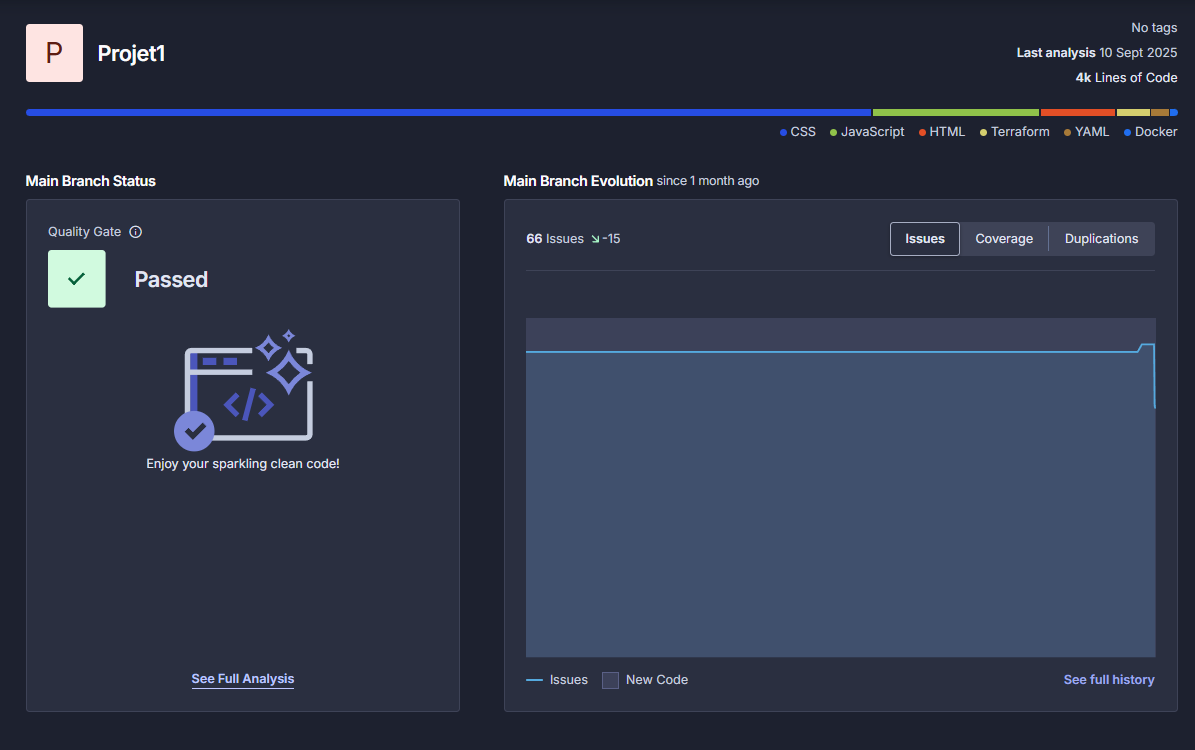

Tableau de bord SonarCloud du projet (qualité & sécurité).
5) Ansible : configuration & déploiement
Une fois l'EC2 en place, Ansible installe les dépendances manquantes (Docker, paquets système, etc.) et déploie l'application en conteneur. Les playbooks sont idempotents pour des relances sûres.
Exemples de tâches
- Installation de Docker et activation du service
- Récupération de la dernière image depuis Docker Hub
- Lancement (ou redémarrage) du conteneur applicatif
Résultat : site déployé sur AWS
Au final, le site HTML statique est accessible depuis l'instance EC2. Chaque modification poussée sur GitHub déclenche une nouvelle livraison automatisée (CI/CD complet).
Leçons & bonnes pratiques
- Versionner l'infra (IaC) pour éliminer la dérive de configuration.
- Scanner la qualité/sécurité à chaque build pour éviter la dette technique.
- Taguer les images Docker (ex.
latest+build) pour des rollbacks immédiats. - Automatiser de bout en bout (du code à la prod) pour réduire le lead time.
